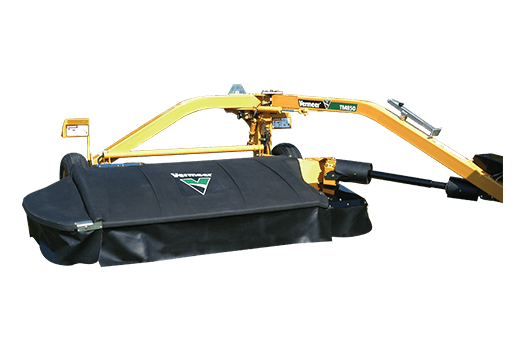

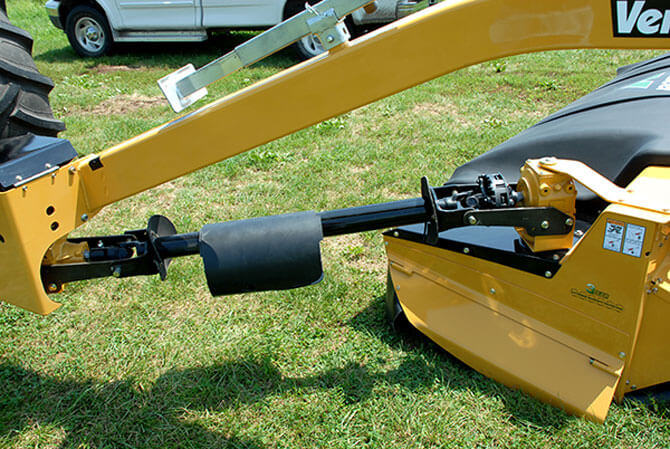

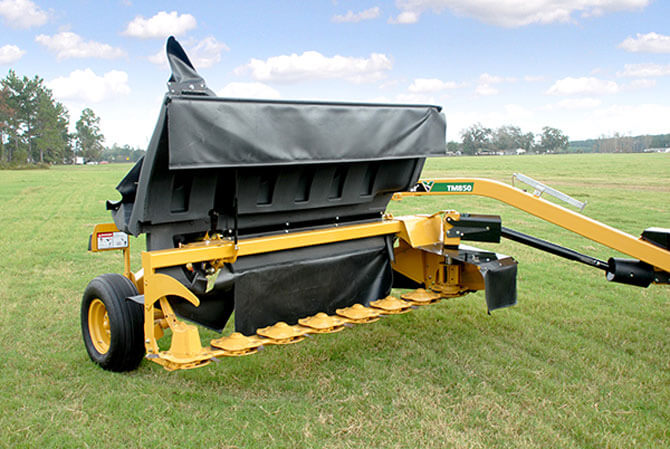

The TM850 trailed mower allows you to mow acres with low horsepower. With its patent-pending, self-aligning driveline system, this heavy-duty trailed mower delivers smooth operation in all tongue positions, enabling it to be easily maneuvered around obstacles in the field. The TM850 pull-behind mower also delivers smooth ground-hugging flotation and control, thanks to its nitrogen-charged hydraulic suspension system.
| Manufacturer | Vermeer |
| Model | TM850 Trailed Mower |
| Category | Agriculture |
| Price | Request a Quote |
| Year | 2024 |
| Transport Height | 61in (154.9cm) |
| Transport width - standard | 10.1ft (3.1m) |
| Transport Length | 13.8ft (4.2m) |
| Cutting Width | 10.5ft (3.2m) |
| Working Height | 61in (154.9cm) |
| Working Width | 15.8ft (4.8m) |
| Working Length | 13.3ft (4.1m) |
| Total Weight | 2420lbs (1097.7kg) |
| Tongue Weight | 700lbs (317.5kg) |
| Suspension | Hydraulic |
| Torque Protection | Driveline: friction disc clutch |
| Tires | 11L-15 |
| Tongue/hitch | Drawbar |
| Drive PTO | 540 rpm |
| PTO horsepower recommended | 60hp (44.7kw) |
| Hydraulic Type | 2 double-acting |
| Hydraulic Pressure | 2000psi (137.9bar) |
| Hydraulic flow rate | 6gpm (22.7L/min) |
| Cutter bar type | Standard |
| Cut height | 1.3 in - 3 in (3.2 cm - 7.6 cm) |
| Number of Discs | 8 |
| Disc Diameter | 19.7in (50cm) |
| Disc Speed | 2965rpm |
| Number of Blades | 16 |
| Angle Adjustment | Hydraulic pitch control |
| Quick Clip® blade retention system | Standard |
| Curtain material | 1400 g/m2 polyester woven material with flexible PVC covering |
| 3-year limited cutter bar warranty | Standard |
| Optional swath formation | Optional swathwheel |
| Skid Shoes | Standard modular independent skid shoes; Optional topping wear skids |
| Highway Lights | Standard |
