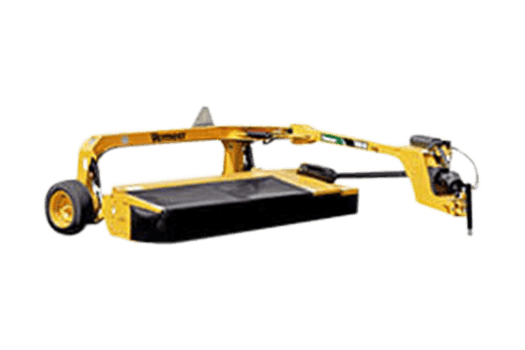

When it’s time to mow, it’s time to go. The TM810 trailed mower is designed for simplicity throughout the mowing process: hookup, transport, adjustments, maintenance and getting work done in the field. Compared to other 3-pt disc mowers, its 60-hp (44.1-kW) requirement is 20% lower — bringing flexibility to your hay fleet. It brings consistency and convenience, too, while delivering a clean cut in the field.
| Manufacturer | Vermeer |
| Model | TM810 Trailed Mower |
| Category | Agriculture |
| Price | Request a Quote |
| Year | 2024 |
| Transport Height | 46in (116.8cm) |
| Transport width - standard | 10.8ft (3.3m) |
| Transport Length | 15.3ft (4.7m) |
| Cutting Width | 10.5ft (3.2m) |
| Working Height | 46in (116.8cm) |
| Working Width | 14.9ft (4.5m) |
| Working Length | 14.3ft (4.4m) |
| Total Weight | 2300lbs (1043.3kg) |
| Tongue Weight | 600lbs (272.2kg) |
| Suspension | Rubber torsion |
| Torque Protection | Driveline: friction disc clutch |
| Tires | 27x9.5-15 |
| Tongue/hitch | Drawbar |
| Drive PTO | 540 rpm |
| PTO horsepower recommended | 60hp (44.7kw) |
| Hydraulic Type | 2 double-acting (1 double-acting with optional kit) |
| Hydraulic Pressure | 1250psi (86.2bar) |
| Hydraulic flow rate | 6gpm (22.7L/min) |
| Cutter bar type | Standard |
| Cut height | 1.3 in - 3 in (3.2 cm - 7.6 cm) |
| Number of Discs | 8 |
| Disc Diameter | 19.7in (50cm) |
| Disc Speed | 2797rpm |
| Number of Blades | 16 |
| Angle Adjustment | Manual turnbuckle |
| Quick Clip® blade retention system | Standard |
| Curtain material | 1 ply 1/8 in rubber |
| 3-year limited cutter bar warranty | Standard |
| Optional swath formation | Optional swathboard |
| Skid Shoes | Standard modular independent skid shoes; Optional topping wear skids |
