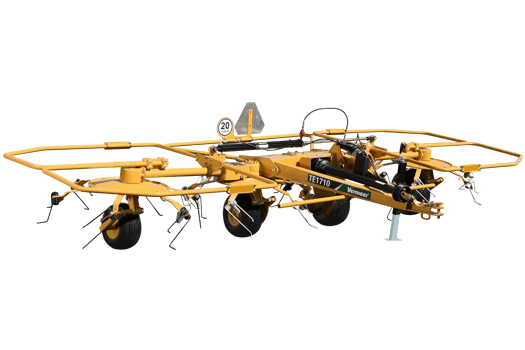

TE1710 Tedder

A unique hook tine design allows the tedder to pick up and spread large amounts of crop by creating a “bottoms-up” motion for even distribution and quick crop aeration.

The large, durable basket wheels with 5-bolt hubs offer ground contouring and flotation in the field and a smooth ride on the road. Plus, it includes the convenient maintenance and durability you’ve come to expect in Vermeer equipment. Vermeer TE1710: spread the word.

*Tim Schnakenberg, University of Missouri, Makin Hay Minute: Tedders: Why and When to Use Them. See the video.

General

Manufacturer Vermeer
Model TE1710 Tedder
Category Agriculture
Price Request a Quote
Year 2024

Dimensions and Weights

Tedding width 17ft (5.2m)
Transport Height 8.5ft (2.6m)
Transport Width 9ft (2.7m)
Transport Length 7.2ft (2.2m)
Total Weight 1480lbs (671.3kg)
Tongue Weight 240lbs (108.9kg)
Tire size 18.5 x 8.5-8
Basket tilt and adjustment Hydraulic, toolless adjustment
Number of Baskets 4
Tine Arms per Basket 6
Type of Tine Hook tine
Torque protection driveline Radial pin clutch
PTO Horsepower Requirements 34hp (25.4kw)
Hydraulic requirements 1 double-acting
Hydraulic pressure minimum 2100psi (144.8bar)
Hitch Drawbar clevis connection
Drive PTO 540 rpm
SMV Sign Standard
