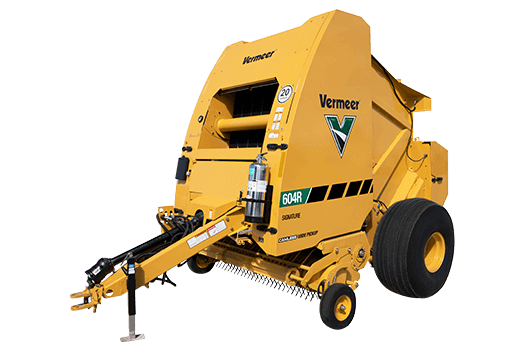

604R Signature Baler

What does your 604R Signature baler say about you? That you value bale appearance and want consistent, square-shouldered bales. That you value simplicity and durability and want a pickup that’s built for a variety of applications. That you value convenient features that allow you to control your baler and ultimately create good-looking, high-density bales. And that you value convenience and want smart features that help make your operation more efficient—like the Atlas Pro™ control system. A Signature says it all.

General

Manufacturer Vermeer
Model 604R Signature Baler
Category Agriculture
Price Request a Quote
Year 2024

Bale Size

Bale Diameter 36 in - 72 in (91.4 cm - 182.9 cm)
Bale Width 47in (119.4cm)
Maximum bale weight 2400lbs (1088.6kg)
Length standard 164in (416.6cm)
Length with net 184in (467.4cm)
Length with ramp 206in (523.2cm)
Height 121in (307.3cm)
Width with standard tires 101in (256.5cm)
Width with optional tires 115in (292.1cm)
Tires Standard - 14L-16.1; Optional - 21.5L-16.1 flotation tire
Weight fully optioned 7280lbs (3302.2kg)
Drive Roller Size 5.5 in (14 cm)
Idler roller size 3.5 in (8.9 cm), 4.8 in (12.1 cm)
Start Roller Size 5.3in (13.3cm)
Belt Type Premium mini rough top
Number of Belts 6
Width of Belt 6.8in (17.3cm)
Length of belt (long) 563.5in (1431.3cm)
Length of belt (short) 557in (1414.8cm)
Type of Lace Alligator rivet
Silage kit Optional
Driveline Standard: 540 rpm, standard lube, friction clutch; Optional: 1000 rpm, standard lube, automatic clutch
Torque protection pickup Radial pin clutch
Roller chains Single 60 and 80
Bearing and Sprocket Configuration Hex drive shafts and bearings
PTO horsepower minimum 70hp (52.2kw)
PTO horsepower recommended 90hp (67.1kw)
Pickup type Camless wide
Width tooth to tooth 70.5in (179.1cm)
Width on outside flair 73.8in (187.5cm)
Tooth Bars 5

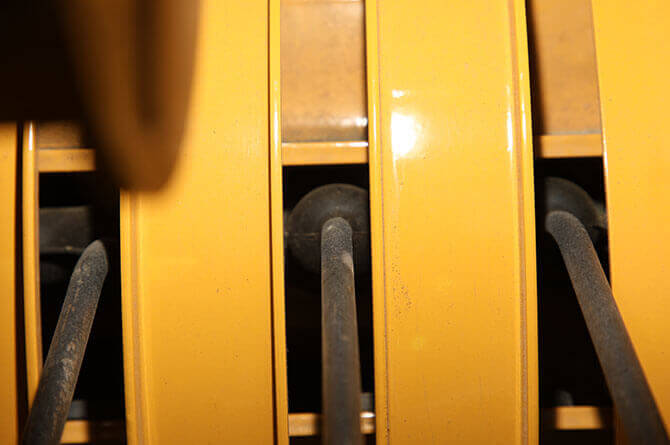

Number of Teeth (70) double rubber-mounted
Teeth spacing 2.83 in (7.2 cm)
Stripper bands Steel
Flotation Gauge wheels 4.8 - 16 HD semi-pneumatic with spring assist
Pickup Lift Hydraulic
3-year pickup warranty Standard
Control system type Atlas Pro™ control system
Display 7 in (17.8 cm) color touch screen
Field Statistics 50 fields with names
Field statistics download USB
Bale shape indicators Standard
Moisture Standard - up to 27%
Bales per hour Standard
Auto eject Optional
Bale density adjustments Standard through control system monitor
Density readings Digital gauge
Cylinder size 2.5 in (6.4 cm)
Twine system Optional
Netwrap system Optional
Net gauge via control system Standard
Net tension control via control system
Netlift system Optional
Extra roll storage Standard
Bale ramp Hydraulic
Auto Lube greasing system Optional
Grease bank Standard
Right-hand door Standard
LED maintenance lights Optional
Fire extinguisher, safety chain Optional
